Large size environmental CNC multi-cutting moly wire cut EDM machine MS-1080F MS-1080F manufacturer from China Topwedm Machine Tool Co.,Ltd

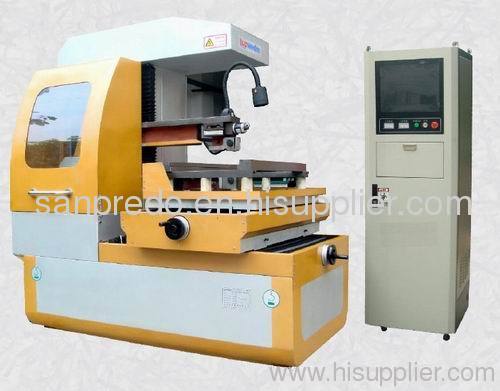

Large size environmental CNC multi-cutting moly wire cut EDM machine MS-1080F

Payment Terms:	T/T,L/C
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: MS-1080F

Production Capacity: 100 sets per month

Delivery Date: 15 days

Raw Material: Steel Bar

Extra Services: Machining

Certification: ISO 9001:2000

Brand Name: TOPWEDM

Means of Transport: Ocean

Packing: wood cases

Power: Cnc

Machine Type: Others

Automation: Automatic

Material / Metal Processed: Alloy

CNC high speed molybdenum wire cut EDM machine

Specifications

Worktable dimension:1400×1000 mm
Travel of X,Y,Z axes:1000×800×500 mm
Max workpieces' dimension:1300×920×480 mm
Max workpieces' weight:2500 kg
Travel of U,V axes:±30-120 mm
Diameter of elctrode:0.12—0.25 mm
Dimension of plant:2500×2400×2300 mm
Standard power supply:380V±10% / 50Hz / 2kVA

Control system

Communications Integrator(CI):RS232\NIC\USB
ISO code:3B/G code
File format:AUTOCAD DXF\IGES\AUTOP
