Parameters
Unit

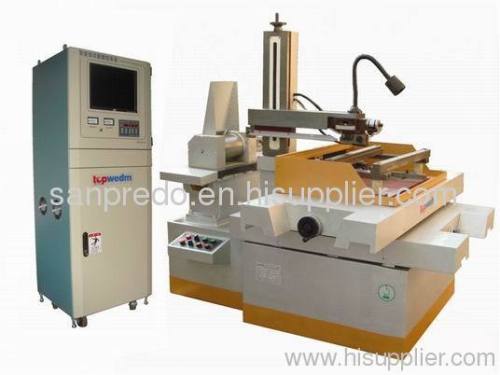

Model         DK7763A/F/J

Travel X\Y\Z
mm
630×800×500/600(A/F)
630×1000×600(J)

Travel U\V
mm
60-240

Max. taper angle
 °/mm
 ±3-30°/80

Diameter of wire
mm
0.16—0.25

Wire tension
N
10 - 30

Wire running speed
m/s
1 - 12

Max. cutting speed
mm2/min
 ≥150

Best surface finish
 μm(Ra)
 ≤1.2

Repeat Positioning Accuracy
mm
0.008

Precision machining
mm
0.012

Machine dimension (W×D×H)
mm
2250×2100×2200(A/F)
2250×2300×2200(J)

Weight total
kg
3650(A)
3850(F/J)

Work tank

Driver of worktable
----
10pats 5 phase driven by step motor

Driver of UV axis
----
6pats 3 phase driven by step motor

Max. workpiece weight
kg
1500

Max. workpiece dimension
mm
1100×850×500/600(A/F)
1300×850×500/600(J)

Work table dimension (W×D)
mm
1200×920(A/F)
1450×920(J)

Electrical supplies

Standard
----
3×380V ±10% ,50/60Hz 1.5KVA

Other supply
----
200V / 415V

Room condition
----
15-30C / 40-80%

Dielectric unit

Filter accuracy
Um
----
10

Dielectric unit capacity
L
50
80

CNC System

Cabinet dimension (W×D×H)
mm
950×530×750(Desk style)
550×530×1650(Cabinet style)

CNC type
----
PC based controller, Standard Industrial DOM, 15″LCD

Communication
----
RS232, NIC ,USB

Axis controlled
----
4 axis simultaneous

ISO code
----
Linear-circular-taper-4 axis program with G codes

Single pulse advancing accuracy
mm
0.001

Language
----
English-Chinese

Dimension
----
Metric-Inch
