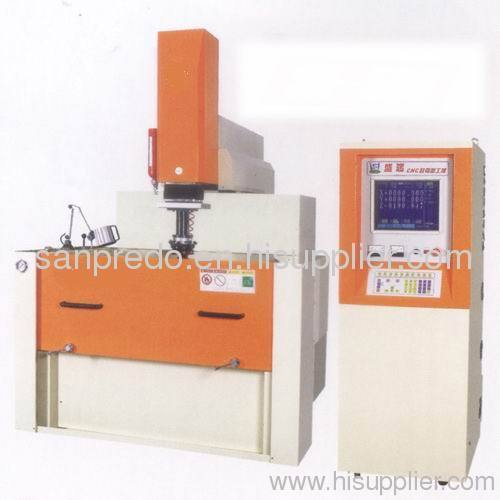

Specifications of CNC Sinker EDM Machine Model:CNC-540 / 75A

The movement of Axes
1.Longitudinal travel of worktable X -axis 500 mm
2.Cross travel of worktable Y-axis        400 mm
3.Ram servo travel Z-axis              310 mm

Worktable
1.Maximum Load 2000 kg
2.Out size of work tank :1370*720*450 mm
3.Dimension of worktable 850*450mm

Oil Tank
1.Gross weight of oil tank 350 kg
2.Capacity of oil tank 2000 Litres

Other Parameters
1.Maximum distance from the work head to the surface of worktable 390~690 mm
2.Maximum weight of electrode   150 kg
3.Gross weight of complete machine 2500 kg

CNC control unit

Control Method and Axes ...........Close Loop(xyz 3-axis)
Min.Setting Unit ................0.005mm(0.001mm)
Max.Setting Unit ............9999.995mm(9999.9999mm)
Coordinate System ..........INC/ABS
Display System .............15 inch CRT/VGA
Control System .............PC BASE
Inching ..................0.005mm(unit)×1,×5,×10
Data savings...............10000 groups
Max.Machining Current...........75A
Total Power input ........... 6KVA
Max.Material Removal Rate ........560 Mm /min
Electrode Wear Rate .............<0.2 %
Best Surface Roughness .......... 0.15 um Ra
External Dimension(X.Y.Z) ....... 830×840×1850mm
Packing Dimension(X.Y.Z) ........930×940×2050mm
Net Weight .................. 370 kg
Machining Setting amount Per set ........30
Steps................... 10
Machining Mode........... Sqr/X/Rd/Crs/Side Sparking
orbit Cutting ...........XY(Z Lock), XYZ
Continuous Machiningmakehole amount ......100

Standard Accessories:
1.Monitor Displayed&3-AXes Linear Scales
2.Z Axis DC Servo Motors & Ball scr3ws.
3.1 PCS Electorde Holder.
4.1 PCS Working Lamp.
5.1 Set Tools With Toolbox &Clamping Kits.
6.1 Set Cartridge Paper Filters.
7.Machine Level Mounts.
8.Auto Fired Detect System&Extinguisher.
9.Remote Control box.
10.Operation Manual&Technical Data.
